Pipe Repair Clamps and Couplings
Technical Specifications:
| Specification | Value |
| Material | Mild Steel is Standard. Stainless Steel can be provided on request |
|---|---|
| Sizes | 2" to 12" |
| Finishes Available | Plain, Electro-galvanised, Zink Flake |
| Max Temp | 100°C |
| Max Pressure | 16 Kg/cm^2 |
Application/Details:
These easy to use Pipe Leakage Repair Clamps are designed to stop the leakage of Minor or Major Holes, Longitudinal Cracks etc. Note the pipe around the crack must be strong enough to hold the tightening force of the clamp. (that is, it must not be badly rusted). It provides a complete seal hence cover the pipe completely.
Construction:

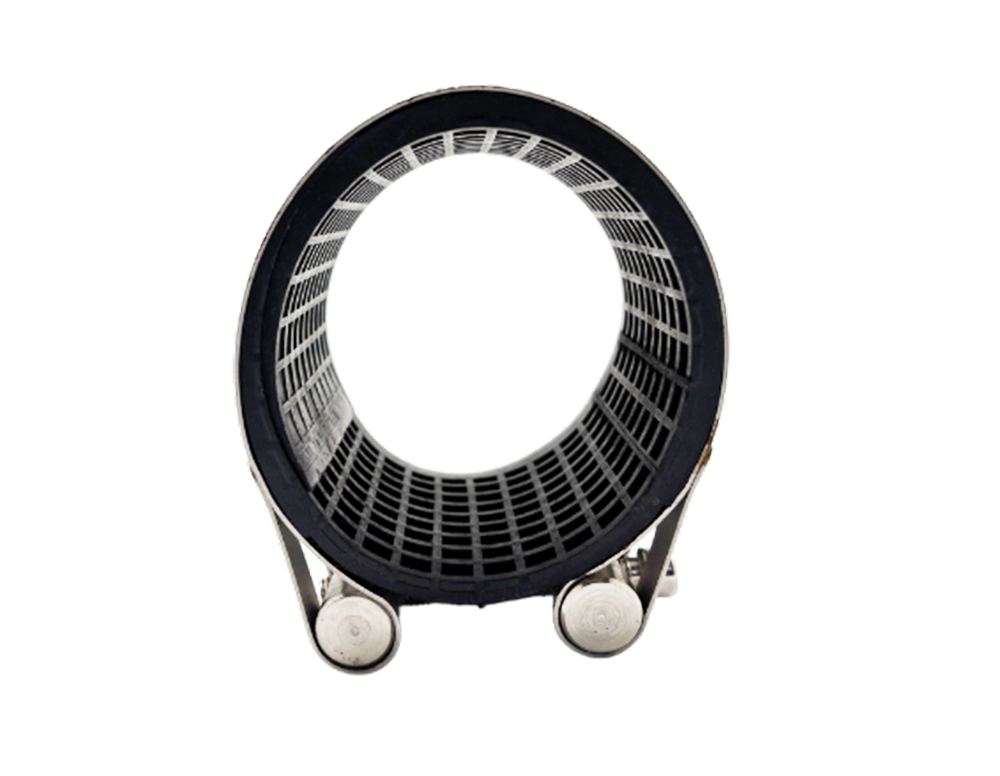

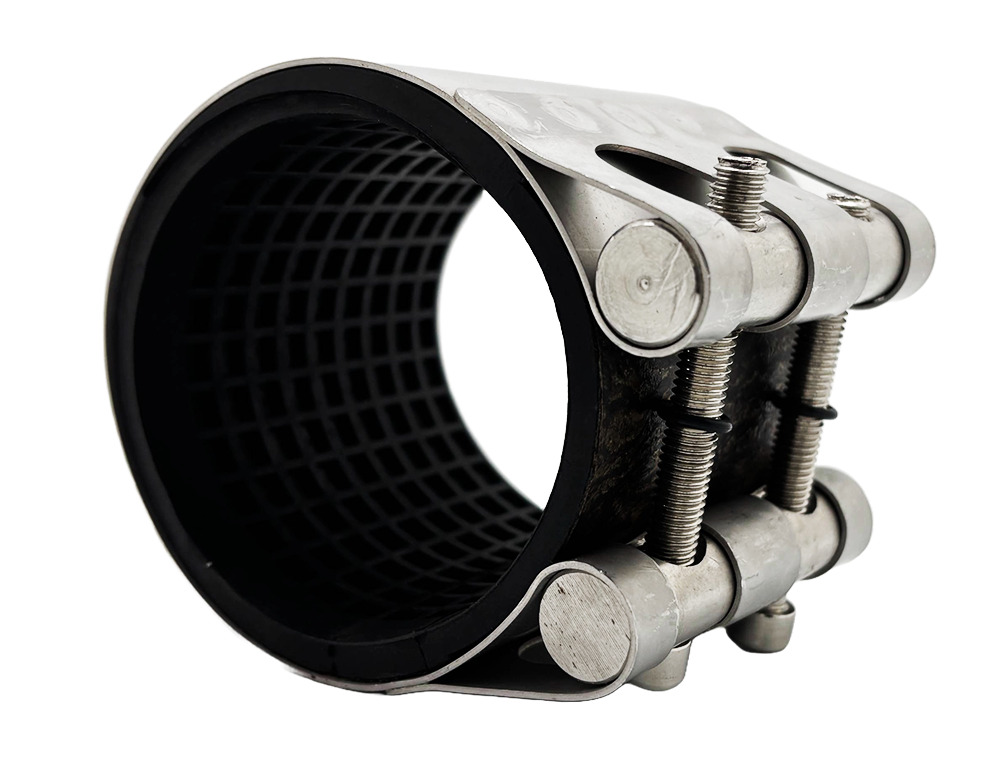

The RC model Leakage Repair Clamp is made of a steel band which is lined with specially designed WAFFLE patterned rubber to arrest the leakage into a confined area. The tightening is done. by 2 strong bolts.
Technical Sheet:
| Product Code | Length of Clamp | Nominal Pipe Size | Pipe OD | Range | Bolt | Working PR | |
| (MM) | (IN) | (MM) | (MM) | (MM) | Kg/cm^2 | ||
| DURAFIX-D-03001 | 88/162 | 2" | DN50 | 60.3 | 59-62 | M8 | 16 |
|---|---|---|---|---|---|---|---|
| DURAFIX-D-03002 | 88/162 | 2. 1/2" | DN60 | 76.1 | 75-78 | M8 | 16 |
| DURAFIX-D-03003 | 88/162 | 3" | DN75 | 88.9 | 88-92 | M10 | 16 |
| DURAFIX-D-03004 | 88/162 | 4" | DN100 | 114.3 | 112-116 | M10 | 16 |
| DURAFIX-D-03005 | 88/162 | 5" | DN125 | 140 | 137-143 | M12 | 16 |
| DURAFIX-D-03006 | 88/162 | 6" | DN150 | 168 | 166-170 | M12 | 16 |
| DURAFIX-D-03007 | 88/162 | 8" | DN200 | 219 | 217-221 | M14 | 16 |
| DURAFIX-D-03008 | 250 | 10" | DN250 | 273 | 271-275 | M14 | 16 |
| DURAFIX-D-03009 | 250 | 12" | DN300 | 325 | 323-327 | M14 | 16 |
| DURAFIX-D-03010 | 250 | 14" | DN350 | 355.6 | 354-358 | M14 | 16 |
