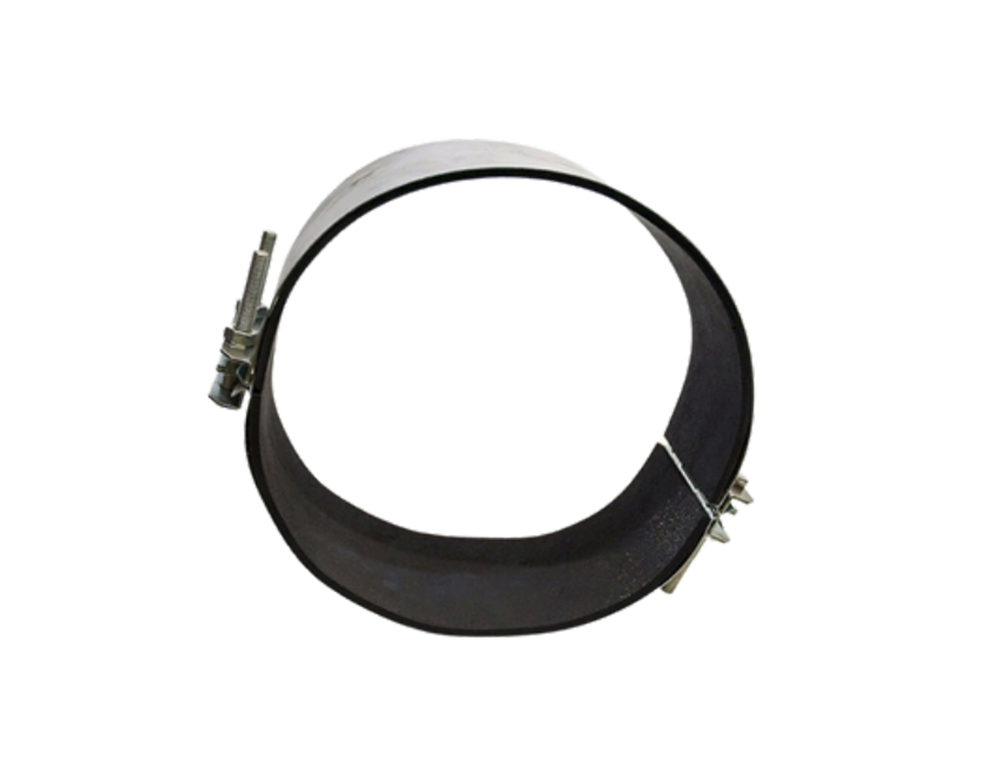

Combination Usage
Model BYLDR-A02 can be used in combination also to repair leakage in larger size pipes.
Combination configuration reduces the Working Pressure Rating of the clamp to 10 kg/cm2.

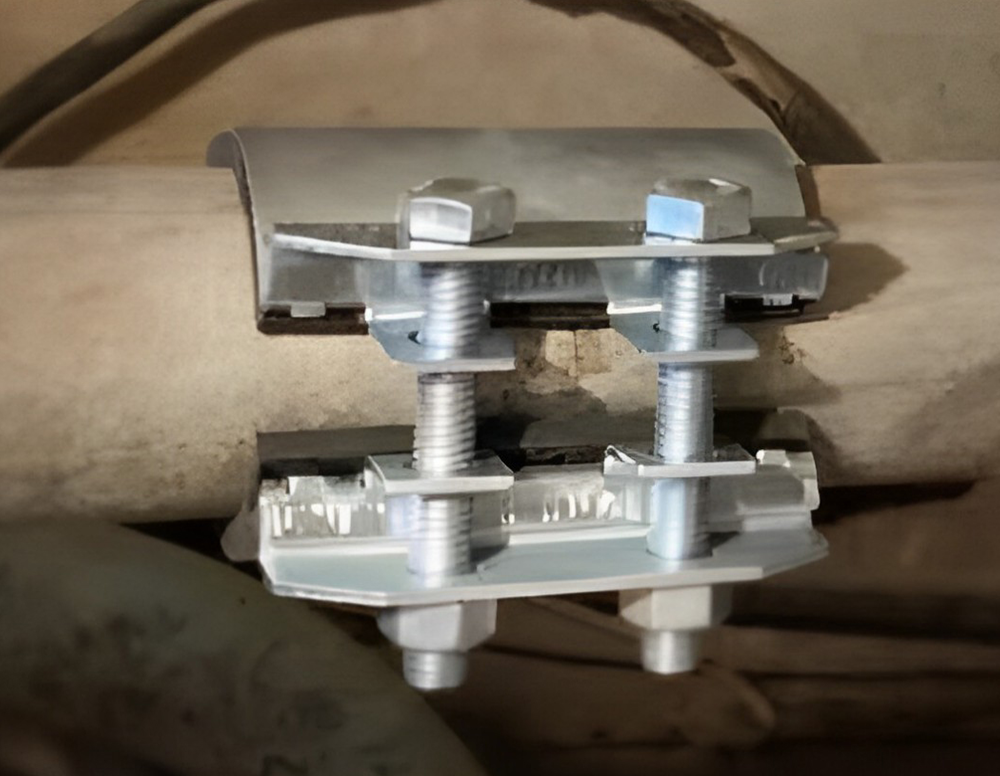

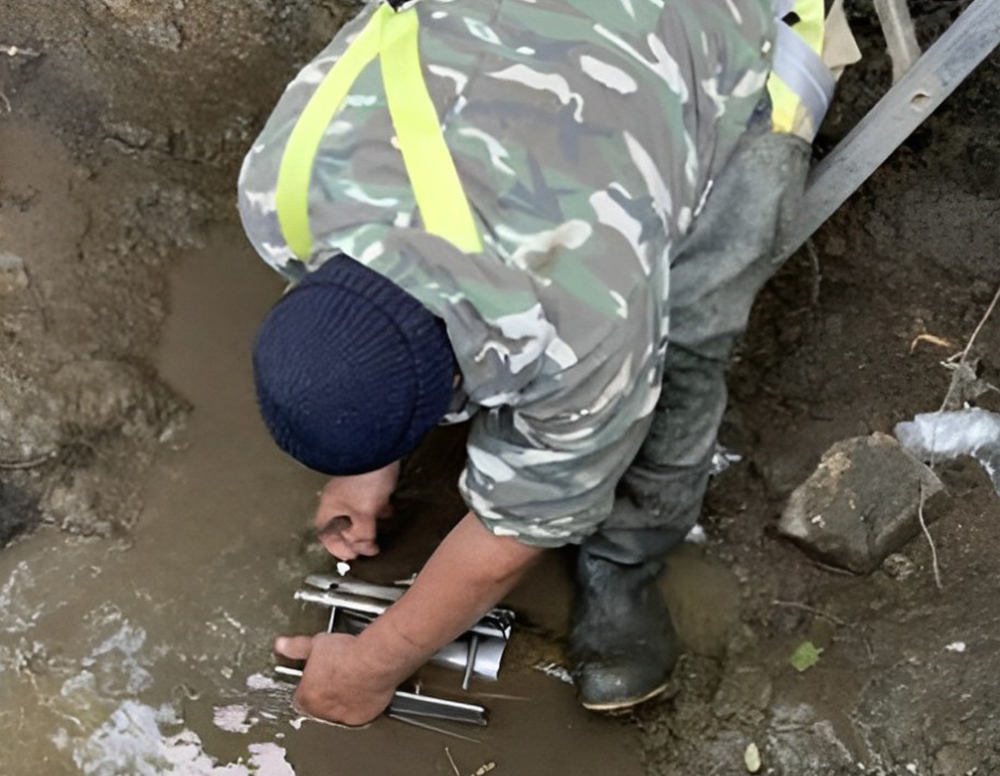

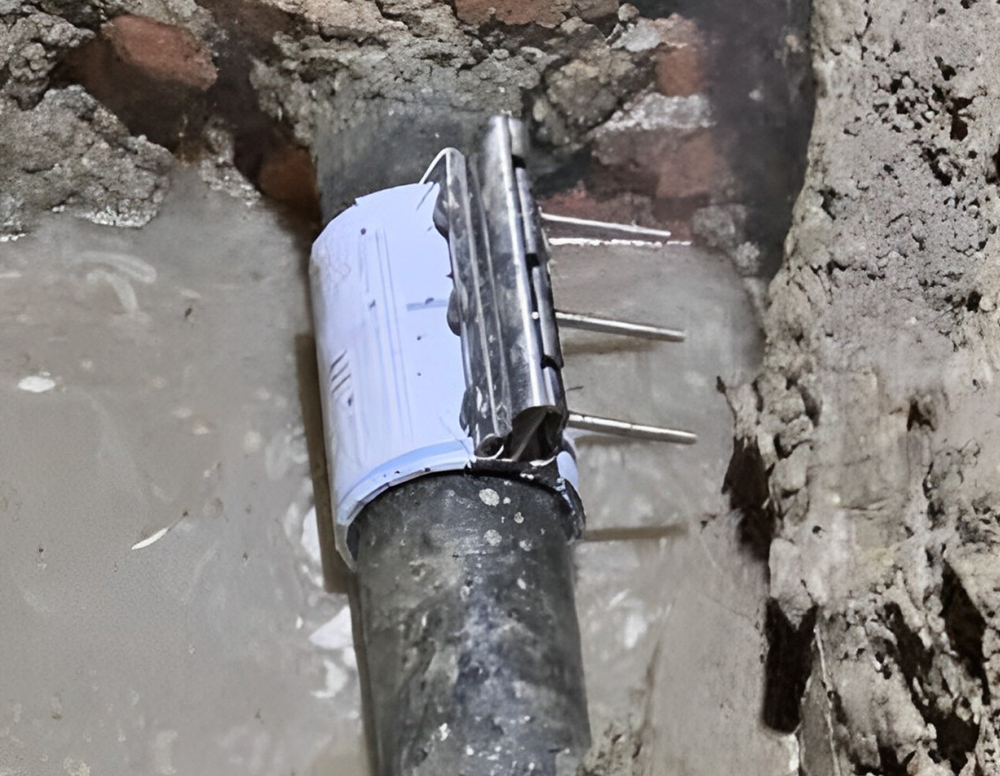

Some examples of the actual usage of the Pipe Repair Clamps:
Technical Specifications:
| DN OF PIPE (MM) | COMBINATION OPTION |
| 215-233 | DN101-110 + DN101-110 |
| 222-240 | DN101-110 + DN110-118 |
| 229-247 | DN110-118 + DN110-118 |
| 244-262 | DN101-110 + DN130-139 |
| 251-269 | DN110-118 + DN130-139 |
| 273-291 | DN101-110 + DN159-170 |
| 273-291 | DN130-139 + DN130-139 |
| 280-298 | DN110-118 + DN159-170 |
| 302-320 | DN130-139 + DN159-170 |
| 331-349 | DN101-110 + DN217-226 |
| 331-349 | DN159-170 + DN159-170 |
| 338-356 | DN110-118 + DN217-226 |
| 360-378 | DN130-139 + DN217-226 |
| 389-407 | DN159-170 + DN217-226 |
| 447-465 | DN217-226 + DN217-226 |
